Pretreatment Sediment Basins

Description:
Pretreatment sediment basins function as small settling areas or sumps designed to capture coarse sediments, debris, and floatables before stormwater enters the main bioretention system, rain garden, or tree trench. While they serve the same general purpose as sediment pads, they are specifically designed for larger drainage areas and higher sediment loads, providing greater storage capacity and sediment retention.

Purpose and Function:
The primary functions of pretreatment sediment basins are to:

• Capture and settle coarse sediments and floatable debris from runoff before it enters downstream treatment structures.
• Reduce flow velocity and energy, allowing sediment to settle out and minimizing erosion at the bioretention inflow.
• Prevent clogging and premature failure of the infiltration or filtration media by removing sediment at the source.
• Prolong the effective lifespan and efficiency of the downstream green infrastructure asset by reducing maintenance frequency and repair needs.

Typical Placement:
Sediment basins are typically installed:

• At the most upstream inlets of bioretention systems, where the runoff first enters from a larger contributing catchment.
• Downstream of curb cut inlets or storm drain discharges that collect flow from expansive paved or impervious areas.
• In locations subject to high sediment transport, such as roads with frequent vehicular traffic, construction areas, or unpaved shoulders.

Design Considerations:

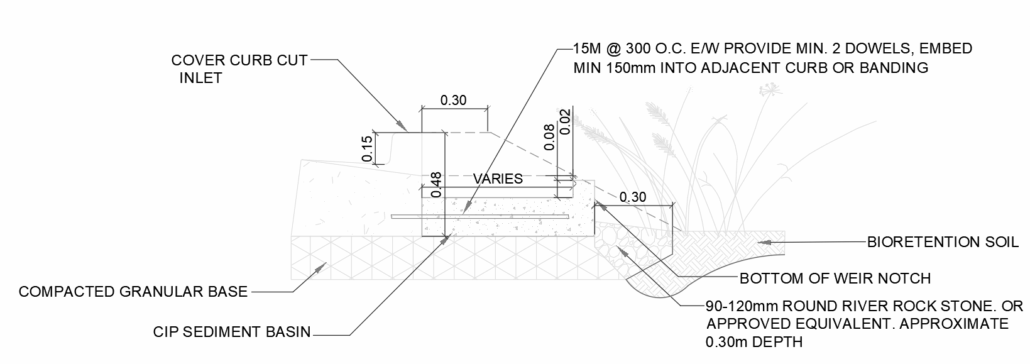

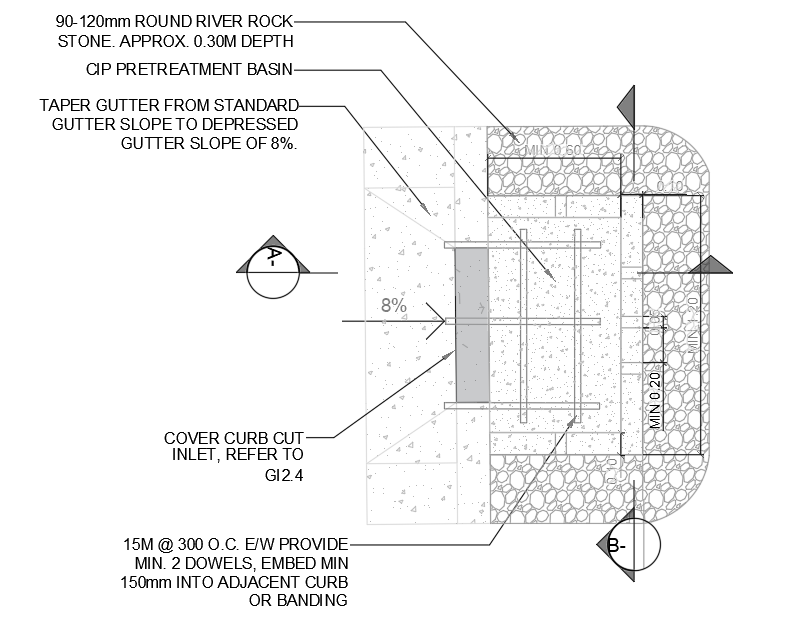

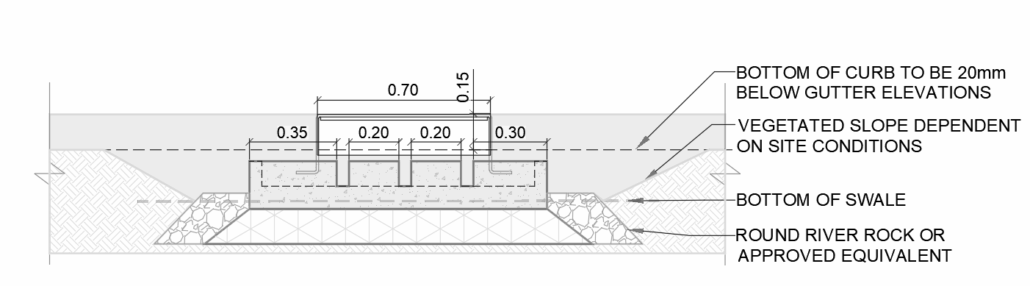

• Configuration: Sediment basins may be designed as shallow depressions, concrete forebays, or subsurface sumps integrated with the inlet structure.
• Storage Volume: The basin should provide sufficient capacity to store accumulated sediment between maintenance intervals, typically sized to capture 0.1 to 0.25 inches of runoff from the contributing drainage area.

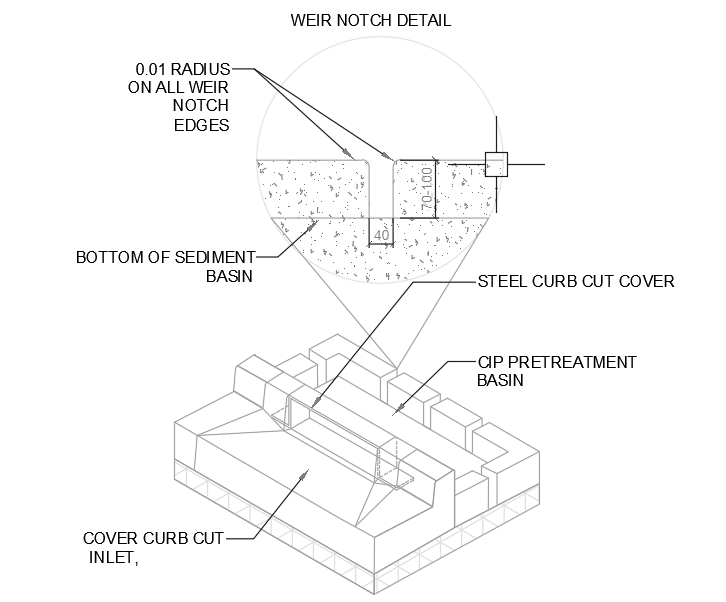

• Hydraulic Control: Flow spreaders or level spreader weirs can be used at the outlet to evenly distribute treated flow into the bioretention media.
• Access and Safety: Design should allow for safe and easy access for maintenance vehicles or crews to remove sediment and debris.
• Material: Basins can be constructed using reinforced concrete, stone-lined depressions, or stabilized earth, depending on site constraints and aesthetics.

Maintenance and Inspection:
Proper maintenance is critical to ensure consistent performance:

• Inspection Frequency: After significant storm events and at least two to four times per year.
• Sediment Removal: Sediment should be removed once it occupies approximately 50% of the basin’s storage depth or when inflow capacity becomes restricted.
• Debris Management: Remove accumulated litter, organic material, and floatables during routine maintenance to prevent clogging.
• Structural Repair: Inspect for erosion, undercutting, or damage to inlet/outlet structures, and repair promptly to maintain function.

Applications:
Pretreatment sediment basins are particularly effective for:

• Large drainage areas that convey substantial runoff volumes and sediment loads to a single bioretention or infiltration system.
• Upstream control points in multi-cell green infrastructure networks, providing staged pretreatment.
• Urban retrofit or high-traffic sites where surface dust, sediment, and roadway debris can rapidly accumulate.

By providing robust sediment capture and hydraulic moderation, sediment basins enhance the performance, durability, and maintenance efficiency of downstream green infrastructure systems.
